Water-jet Technology by TUSCATUBE

With over 30 years of providing custom built spinneret cleaners for the spandex and aramid fiber industries around the globe, we utilize high pressure water to clean critical components while maintaining the integrity of the parts. The process is environmentally friendly - there are no hazardous chemicals or use of extreme heat.  Contact us today to discuss your site's needs.

​

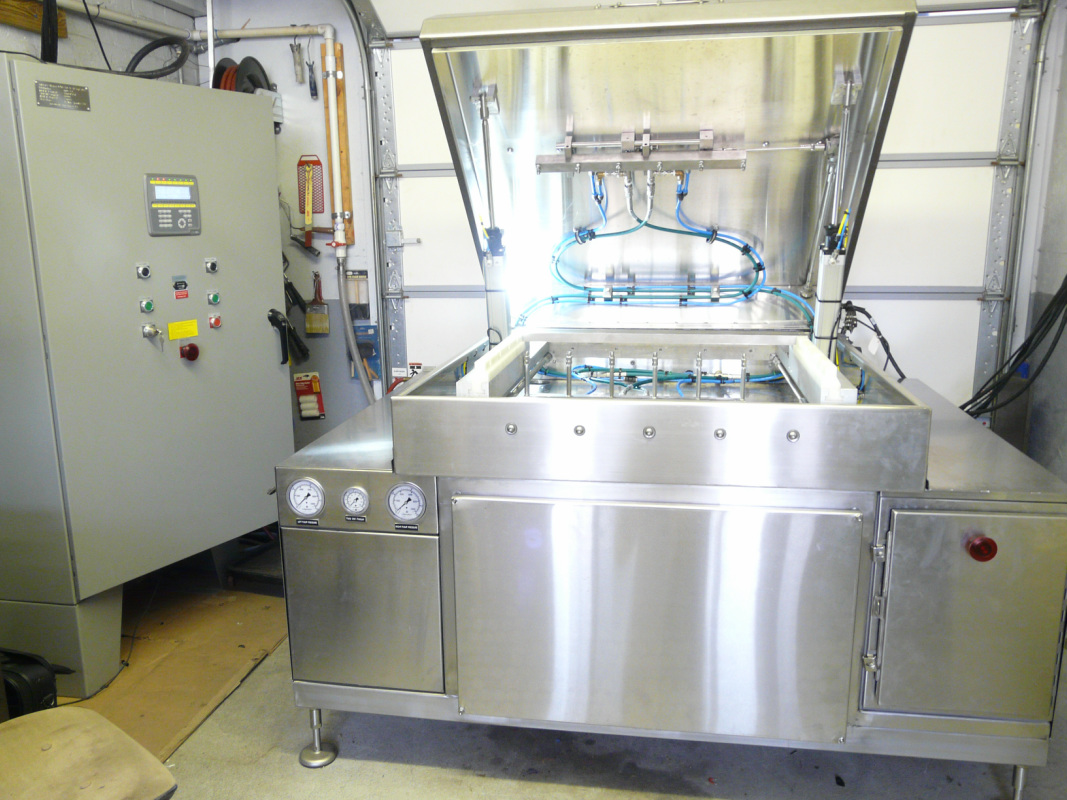

Table and jet move on an X/Y axis.
Parts are located across the white rails or custom fixtures can be designed.

   A 50 HP motor runs two triplex pumps.
Normal operating pressure is 4,200 psi (+/- 200 psi or lower if needed)

Introducing the NEW WK-530 triplex pump sold by General Pump.  {The T-4251 is no longer available for sale, although spare parts will still be available for some years to come.} The WK-530 runs at 1450 RPM, flows at 29 l/min (7.7 gpm) at a maximum pressure of 500 bar (7,200 psi) but we still recommend running at 4200 psi.  We also carry the parts to adapt the pump mount to fit our earlier models.

---

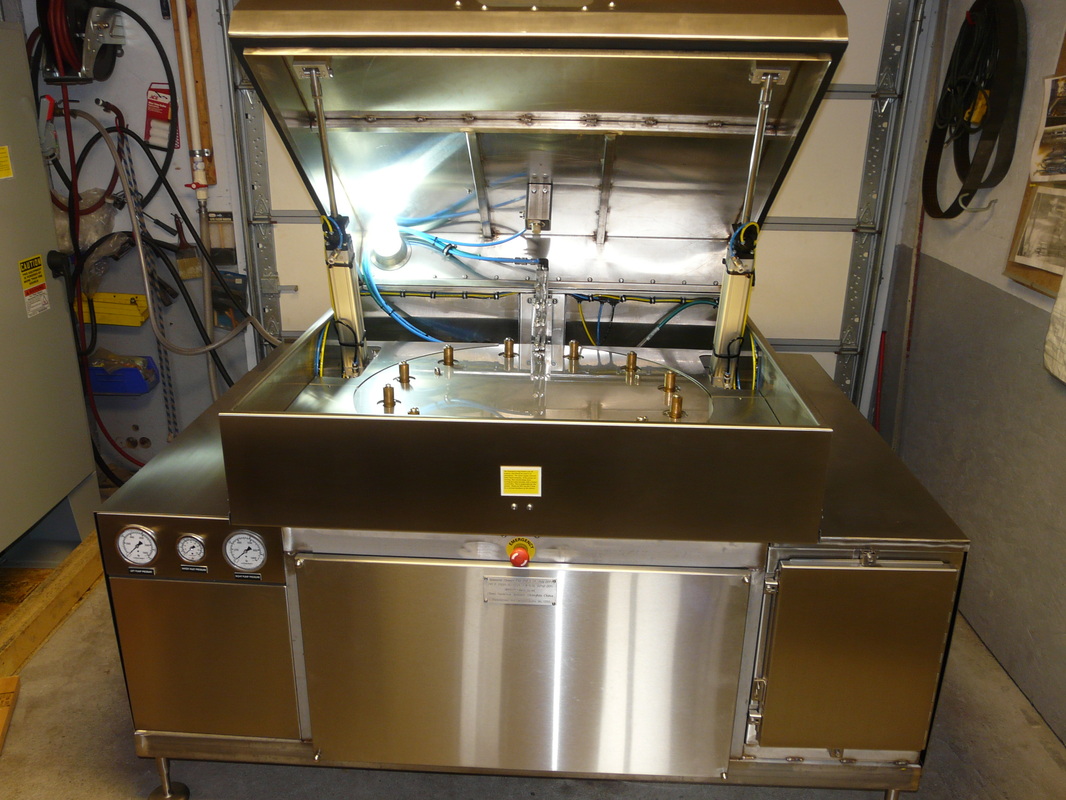

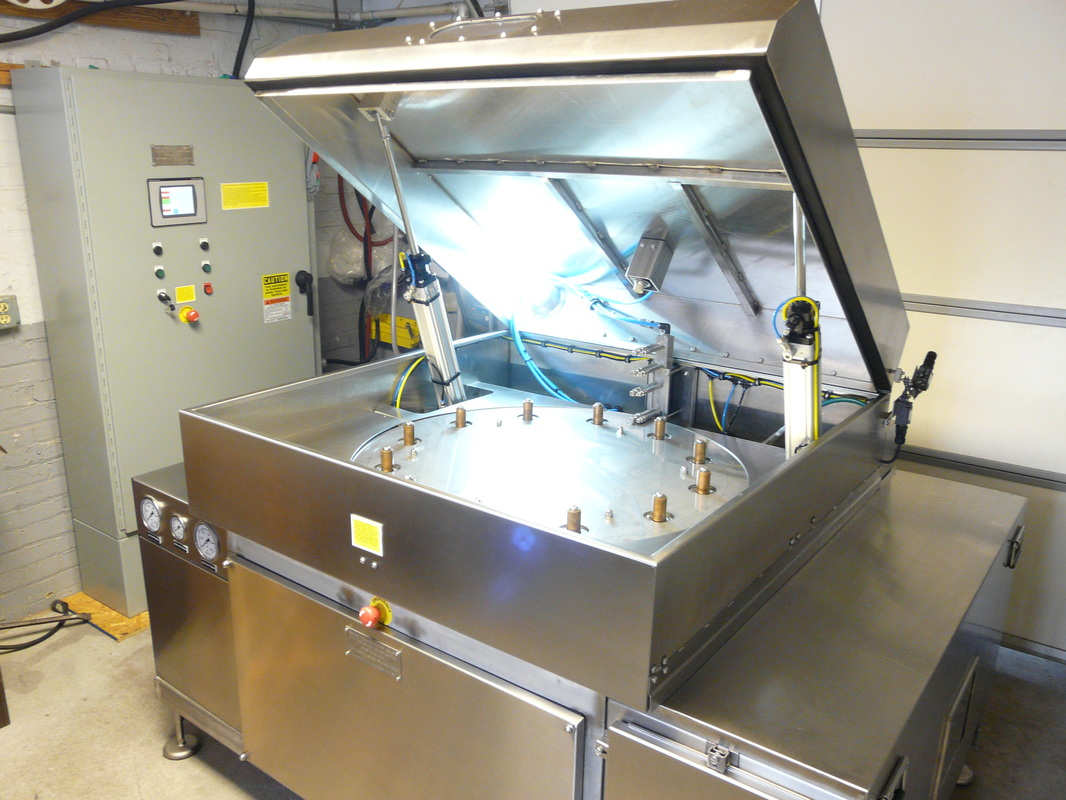

This radial machine comes with 9 or 12 spindles that can be configured to run 2 or 3 radial style parts located on a spindle or in fixtures that can be mounted on the spindles. The parts pass through the jet assembly at the back of the cabinet.

Critical components are inspected via SpinTrak.  Please visit their website at  http://www.spintrak.com/index.html
